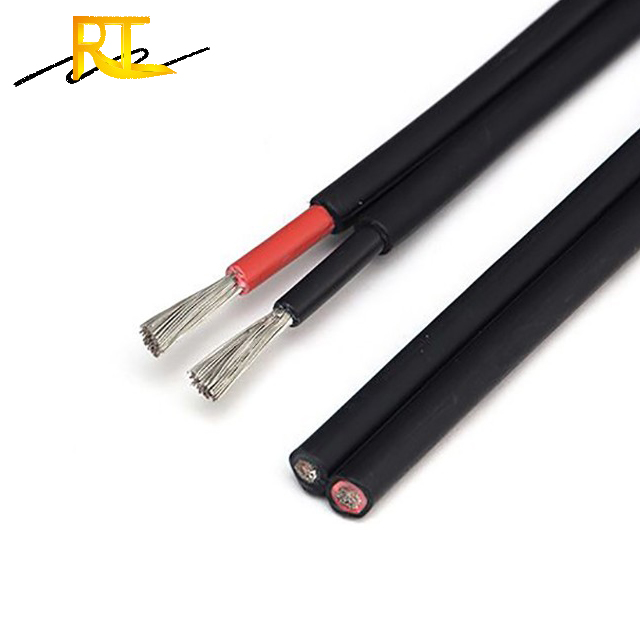

Find Multicore Battery Tinned Copper Conductor Cable, Flat Twin Tinned Copper Cores Cables, Xlpe Jacket Solar Cable on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.

Home > Products > DC Cable > DC Cable Irradiated XLPE Insulation And Jacket

DC Cable Irradiated XLPE Insulation And Jacket

  • DC Cable Irradiated XLPE Insulation And Jacket
  • DC Cable Irradiated XLPE Insulation And Jacket
  • DC Cable Irradiated XLPE Insulation And Jacket
  • DC Cable Irradiated XLPE Insulation And Jacket

DC Cable Irradiated XLPE Insulation And Jacket

    Min. Order: 100 Meter
    Packaging: 1.Packing Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement. 2.Inner Packing:carton box,pull out box,pallet avilable 3.Outer Packing:carton box,pull out box,pallet avilable
    Transportation: Ocean,Land,Air,Express
    Supply Ability: 1000000 Meter/Meters per Month
    Port: Tianjin,Qingdao,Shanghai

Product Description

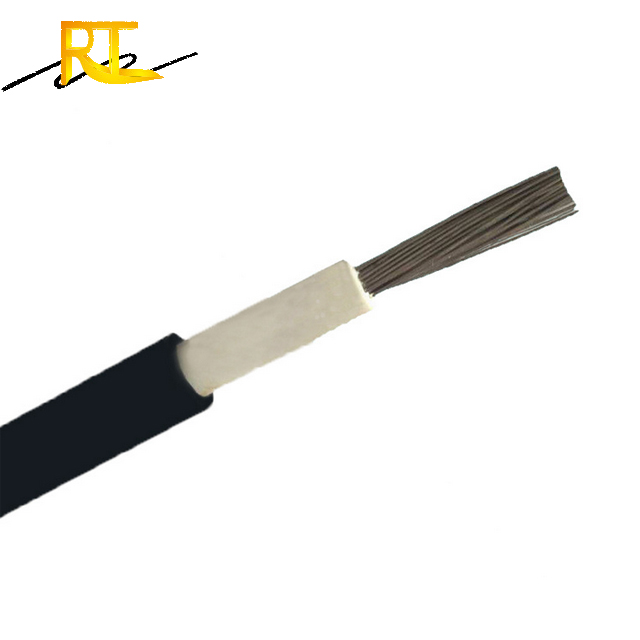

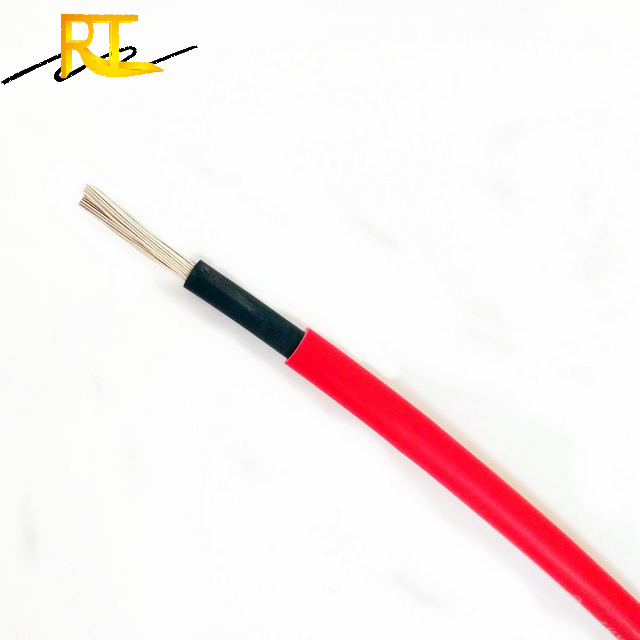

Cable Wire Factory Supply Super PV Solar Cable 4mm 6mm DC Cable Irradiated XLPE Insulation And Jacket


Product Description:

Product Name: DC Solar Cable
Production Specification: 2.5mm2, 4mm2, 6mm2, 10mm2
Conductor Material: Copper/Tinned Copper
Insulation Material: XLPE(XLPO)

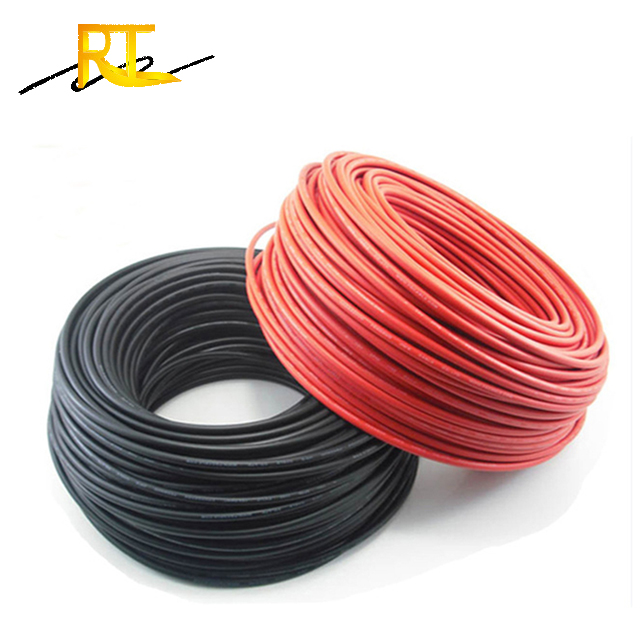

Color: Red/Black/White
Temperature range: -40℃~90℃
Rated Voltage: AC0.6/1KV, DC1.0/1.8KV


Product Fatures:

PV solar cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.


Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.


Electrical

1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.

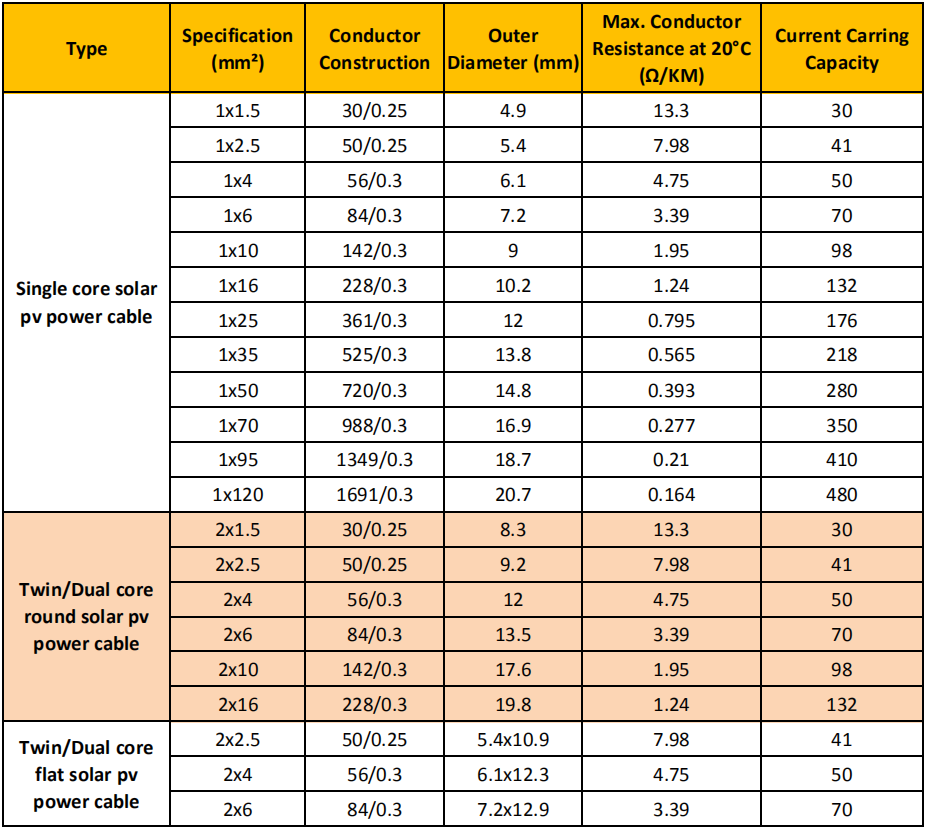

Cable structure

Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.

Product Advantage:

1.Electron-beam cross-linked compounds

2.Excellent resistance to U.V,oil,greases,oxygen and ozone

3.Excellent resistance to abrasion

4.Halogen free, flame retardant,low toxicity

5.Excellent flexibility and stripping performance

6.Very long service life > 25 years at 90°C
