Copper Cold End Ring Connector Terminal
Unit Price: | 0.1~0.5 USD |
---|---|
Min. Order: | 100 Piece/Pieces |
Packaging: | After sealed bags are packed, boxes are packed, boxes are packed, and trays are packed |
---|---|
Productivity: | 10000000 |
Brand: | LONGYI |
Transportation: | Ocean,Land,Air,Express |
Place of Origin: | JIANGSU TAIXING |
Supply Ability: | 1000000000kpcs/Year |
Certificate: | ISO9001 |
HS Code: | 8536909000 |
Port: | Shanghai |
Basic Info
Model No.: VF1.25-3
Product Description

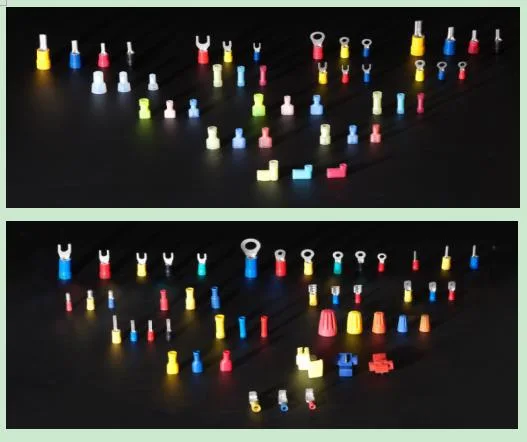

Ring insulated terminals
1, cable lugs are suitable for the connection of copper conductors (section 1.25-5.5mm2) in Power Cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Huawei Telecommunications, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc

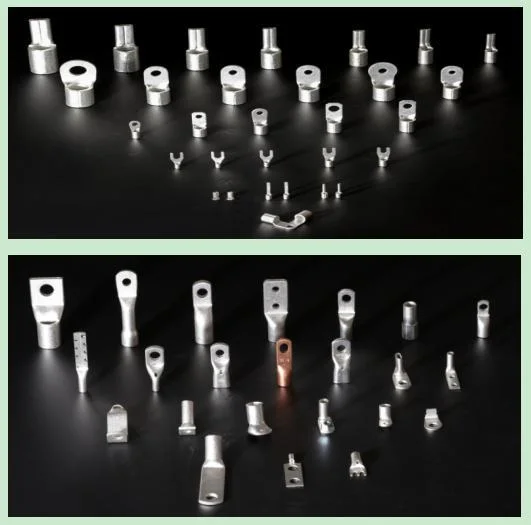

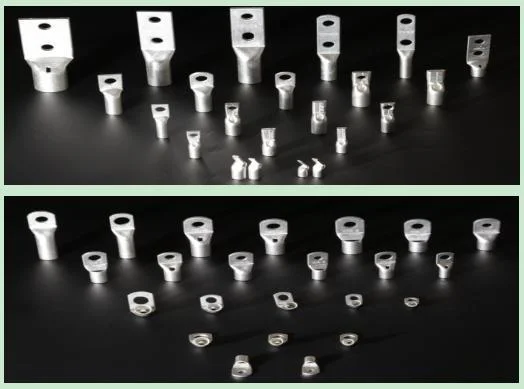

Copper Tube Terminals
1, cable lugs are suitable for the connection of copper conductors (section 1.25-5.5mm2) in Power Cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Huawei Telecommunications, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc











Copper Tube Terminals
PART NO | ITEM NO | WIRE RANGE | DIMENSIONS | |||||||
AWG/MCM | mm 2 | ΦE | ΦD | Φd | W | B | L | COLOR | ||
LY0020-0001 | NL1.25-3 | 22-16 | 0.25-1.65 | 3.7 | 4.0 | 1.7 | 5.5 | 10.4 | 17.3 | RED |
LY0020-0002 | NL1.25-3A | 3.2 | 4.0 | 1.7 | 5.5 | 10.4 | 17.3 | |||
LY0020-0003 | NL1.25-3M | 3.7 | 4.0 | 1.7 | 6.6 | 10.4 | 20.3 | |||
LY0020-0004 | NL1.25-4 | 4.3 | 4.0 | 1.7 | 8.0 | 10.4 | 21.8 | |||
LY0020-0005 | NL1.25-4M | 4.3 | 4.0 | 1.7 | 6.6 | 10.4 | 20.3 | |||
LY0020-0006 | NL1.25-5 | 5.3 | 4.0 | 1.7 | 8.0 | 10.4 | 21.8 | |||
LY0020-0007 | NL1.25-6 | 6.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | |||
LY0020-0008 | NL1.25-8 | 8.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | |||
LY0020-0009 | NL1.25-10 | 10.5 | 4.0 | 1.7 | 13.6 | 10.4 | 31.8 | |||
LY0020-0010 | NL2-3 | 16-14 | 1.04-2.63 | 3.7 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | BLUE |
LY0020-0011 | NL2-3A | 3.2 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | |||
LY0020-0012 | NL2-3M | 3.7 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | |||
LY0020-0013 | NL2-4 | 4.3 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | |||
LY0020-0014 | NL2-4M | 4.3 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | |||
LY0020-0015 | NL2-5 | 5.3 | 4.6 | 2.3 | 9.5 | 10.4 | 22.3 | |||
LY0020-0016 | NL2-6 | 6.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | |||
LY0020-0017 | NL2-8 | 8.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | |||
LY0020-0018 | NL2-10 | 10.5 | 4.6 | 2.3 | 13.6 | 10.4 | 30.8 | |||
LY0020-0019 | NL3.5-4 | 12-10 | 2.63-4.60 | 4.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 | YELLOW |
LY0020-0020 | NL3.5-5 | 5.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 | |||
LY0020-0021 | NL3.5-6 | 6.4 | 5.6 | 3.2 | 12.0 | 13.3 | 27.7 | |||
LY0020-0022 | NL3.5-8 | 8.4 | 5.6 | 3.2 | 12.0 | 13.3 | 27.7 | |||
LY0020-0023 | NL5.5-3 | 12-10 | 4.60-6.64 | 3.7 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | YELLOW |
LY0020-0024 | NL5.5-4 | 4.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | |||
LY0020-0025 | NL5.5-5 | 5.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | |||
LY0020-0026 | NL5.5-6 | 6.4 | 6.6 | 3.5 | 12.0 | 13.5 | 32.5 | |||
LY0020-0027 | NL5.5-6S | 6.4 | 6.6 | 3.5 | 12.0 | 13.5 | 29.2 | |||
LY0020-0028 | NL5.5-8 | 8.4 | 6.6 | 3.5 | 15.0 | 13.5 | 34.5 | |||
LY0020-0029 | NL5.5-10 | 10.5 | 6.6 | 3.5 | 15.0 | 13.5 | 34.5 | |||
LY0020-0030 | NL8-3 | 8 | 6.64-10.52 | 3.7 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | RED |
LY0020-0031 | NL8-4 | 4.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | |||
LY0020-0032 | NL8-5 | 5.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | |||
LY0020-0033 | NL8-6 | 6.4 | 8.3 | 4.5 | 11.0 | 17.5 | 31.5 | |||
LY0020-0034 | NL8-8 | 8.4 | 8.3 | 4.5 | 14.0 | 17.5 | 36.0 | |||
LY0020-0035 | NL8-10 | 10.5 | 8.3 | 4.5 | 18.0 | 17.5 | 39.5 |
Taixing Longyi Terminals Co.,Ltd.
Taixing Longyi Terminals Co.,LTD.,which locates at Taixing city, Jiangsu Province, and was founded in 1991. The company is a professional manufacturer that coalizes design, development and production of cold pressed terminals(also called terminals or connectors). The company specializes in producing and selling regular SC copper lugs, T copper lugs, German standard DIN copper lugs, National standard DT copper lugs,pre-insulated terminals, PVC & Nylon insulated terminals,LT cord-end terminals, and many other types, with more than ten thousands of kinds. We can also design and produce according to the special requests of customers; the annual production capacity has several billions, and the weight is more than 2000 tons, Meanwhile, the company also produces and sells all kinds of national standard, non-standard copper pipes, copper sheets, copper plates, copper bars and other special copper products. The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc. The company owns advanced automatic production line. The molds for making products are all designed and made in our own factory. The raw material,copper pipe is also produced by ourselves, which strongly guarantees the purity and electrical conductivity of the copper, and the best quality of the products. The company has passed ISO9001-2015 system, the products are in accordance with ROHS, European CE.and American UL certificate. Longyi Terminals is famous products, and Longyi brand has been awarded as famous brand in Taizhou City. Longyi always follows the business concept of"Honesty is the best policy, technology thrive enterprise,innovation first and Customer first" and adheres to the quality policy of "continuous improvement, create first-class product, satisfy customers' requirements". We will gradually realizing the ambitious goal of"Longyi Terminals, link to the world" General Manager, Guo Jianguo, warmly welcomes customers from home and abroad to visit our company for guidance and business negotiation! To create a bright future together.
Company Info
- Company Name: Taixing Longyi Terminals Co.,Ltd.
- Representative: GUOYULONG
- Product/Service: Copper Lugs , Copper Terminals , Insulated Terminals , Copper Tube Terminals , Cold-pressed Terminal , Non-insulated Tubular Lugs Terminals
- Capital (Million US $): 1500000RMB
- Year Established: 1991
- Total Annual Sales Volume (Million US $): Above US$100 Million
- Export Percentage: 11% - 20%
- Total Annual Purchase Volume (Million US $): Above US$100 Million
- No. of Production Lines: 7
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 3,000-5,000 square meters
- Factory Location: No.8 Longyi Road Gensi Country Taixing City Jiangsu Province China
- Contact Person: Ms. Honey
- Tel: +86-0523-87830003
