AMD Ryzen 5 2500U Mini PC
| Min. Order: | 1 Case |
|---|
| Packaging: | Standard Export Packing |
|---|---|
| Transportation: | Ocean,Air |
| Port: | Guangzhou |
Basic Info
Model No.: A1-2500U
Product Description
AMD Ryzen 5 2500U Mini PC
AMD Mini PC 5 2500U with Vega 8 Graphic are designed for unique, office applications that require compact size, durability, high reliability, and universal performance. Nuc ryzen characteristics make these Fan Small PC and Mini Desktop PC ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in amd nuc desktops and notebooks are not feasible, yet high processing performance is needed.
Main advantages of AMD Ryzen 5 2500U Mini PC with Vega 8 Graphic:

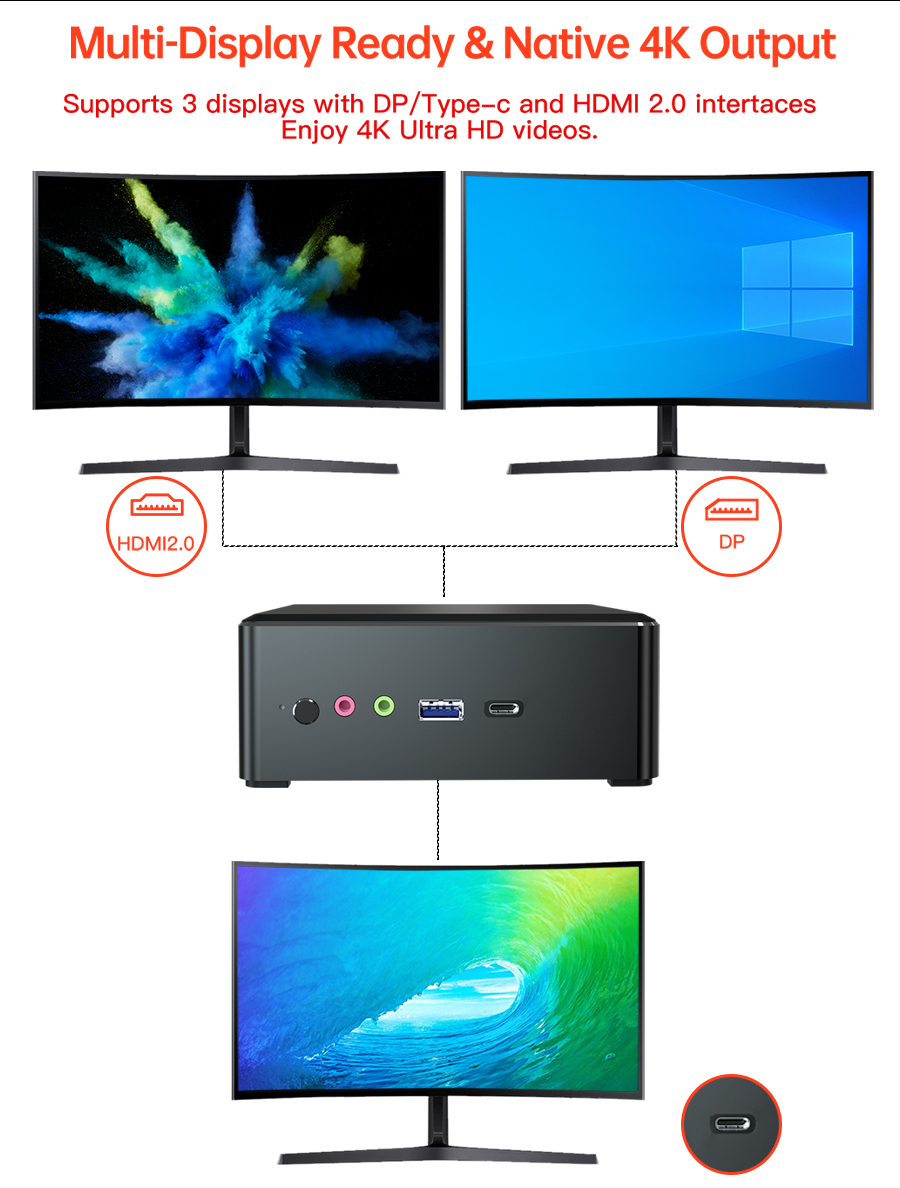

- 2xSODIMM DDR4 memory slot up to 32GB. - Radeon™ Vega 8 Graphics 8 Core Graphics. - Support 1*RJ45 10/100M/1000M+2.4G/5G AC WiFi&Bluetooth - Support 1*M.2 22x80 SATA/NVME/PCIE3.0x4 SSD+1*2.5'' SATA HDD. - 1*HDMI 2.0 and 1*DP, support dual 4K@60Hz display, support HDR. - Support SenseMI Technology/DirectX® 12/Wake on lan/ PXE/Auto restart when lost power
What can this AMD Ryzen 5 2500U Mini PC with Vega 8 Graphic do?
Office work: Office, skype, yahoo, outlook, and all other office requirement support and runs perfect;
Design work: Photoshop, CorelDRAW, Dreamweaver, Illustrator, Flash, In-design and others
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
Entertainment: support blu ray 1080P and 4k video play, XBMC, and others
AMD Ryzen 5 2500U Mini PC with Vega 8 Graphic Specifications:
Basic Information:
CPU
AMD Ryzen 7 2500U
TDP
35W
Level 3 Cache
4MB
BIOS
AMI (American Megatrends Inc.)
Chipset
AMD K17.1 FCH, AMD K17.1 IMC
Memory
2 x SO-DIMM Slot, up to 32GB DDR4
Dual Channel, up to DDR4-2400MHz
OS
Windows 10
Audio
Realtek ALC269 @ AMD K17.1 - Audio Processor - High Definition Audio Controller
Network
Realtek 8821CE Wireless PCIe GbE Family Controller
10/100Mbps/1000Mbps BaseT LAN
Video
Radeon™ Vega 8 Graphics 8 Core
Input/output port
Switch
1 x Power On/Off Switch
Power
1 x 19V DC In
LED
1 x LED
USB
4 x USB3.1, 2X USB2.0
Display
1 x DP, 1 x HDMI
LAN
1 x RJ45 LAN
Audio
1 x MIC, 1 x SPK
Storage
M.2
1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4), support 6Gb/s
SATA
1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s
Wi-Fi
Module
1 x M.2 NGFF 2230(Key E) slot for Wi-Fi module (WIFI 802.11 b/g/n/ac+BT 4.1)
Antenna
2 x inner RF cables without antennas
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC +12V~+19V, recommend 19V/3.42A
Operating Temperature
0/70 Centigrade
Storage Temperature
-20/+80 Centigrade
Relative Humidity
0%~90% (non-condensing)
Product Dimension & Details
Size
38.3mm*127.6mm*127.6mm
Weight
Net 1kg, Gross 1.5kg
Shell
Black color aluminum alloy
Cooling Mode
Turbo cooler
Functions
SenseMI Technology/DirectX® 12, PXE, Auto Power on, Wake on LAN

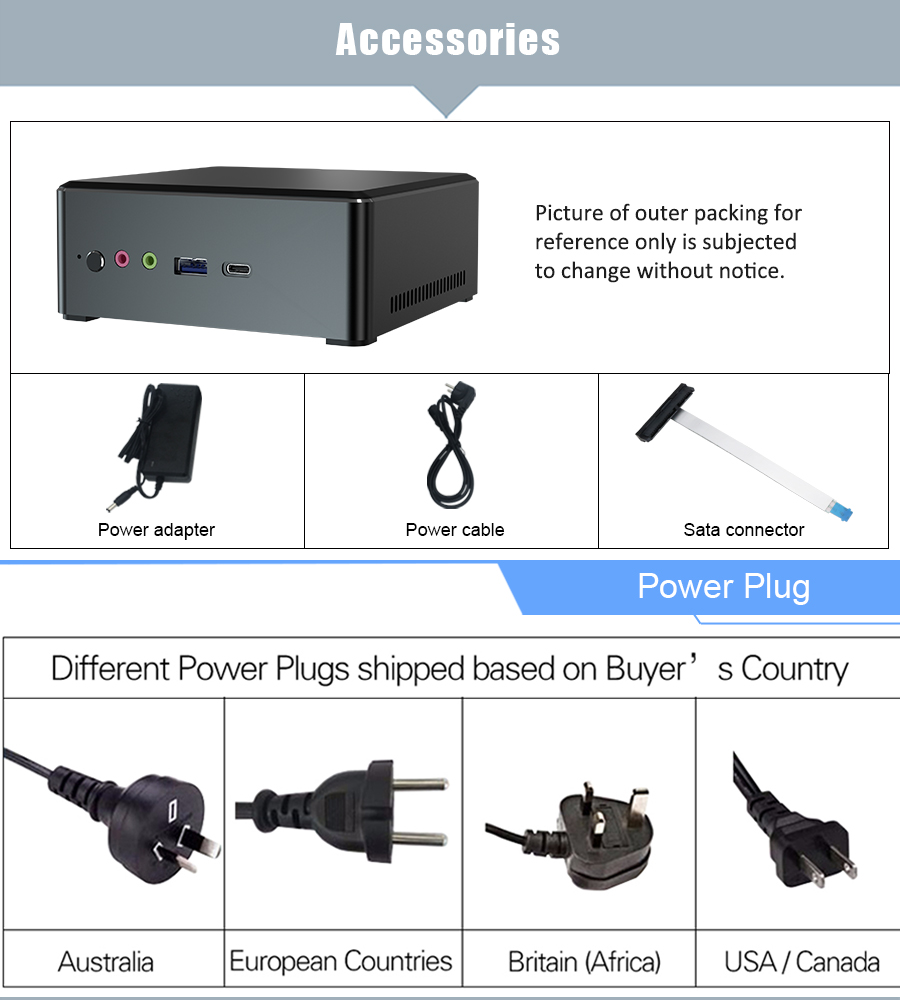

Package Content
Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,
Optional
1xUser Manual, 1xHDMI cable
| Basic Information: | |
| CPU | AMD Ryzen 7 2500U |
| TDP | 35W |
| Level 3 Cache | 4MB |
| BIOS | AMI (American Megatrends Inc.) |
| Chipset | AMD K17.1 FCH, AMD K17.1 IMC |
| Memory | 2 x SO-DIMM Slot, up to 32GB DDR4 Dual Channel, up to DDR4-2400MHz |
| OS | Windows 10 |
| Audio | Realtek ALC269 @ AMD K17.1 - Audio Processor - High Definition Audio Controller |
| Network | Realtek 8821CE Wireless PCIe GbE Family Controller 10/100Mbps/1000Mbps BaseT LAN |
| Video | Radeon™ Vega 8 Graphics 8 Core |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 19V DC In |
| LED | 1 x LED |
| USB | 4 x USB3.1, 2X USB2.0 |
| Display | 1 x DP, 1 x HDMI |
| LAN | 1 x RJ45 LAN |
| Audio | 1 x MIC, 1 x SPK |
| Storage |
|
| M.2 | 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4), support 6Gb/s |
| SATA | 1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s |
| Wi-Fi |
|
| Module | 1 x M.2 NGFF 2230(Key E) slot for Wi-Fi module (WIFI 802.11 b/g/n/ac+BT 4.1) |
| Antenna | 2 x inner RF cables without antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 19V/3.42A |
| Operating Temperature | 0/70 Centigrade |
| Storage Temperature | -20/+80 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Product Dimension & Details | |
| Size | 38.3mm*127.6mm*127.6mm |
| Weight | Net 1kg, Gross 1.5kg |
| Shell | Black color aluminum alloy |
| Cooling Mode | Turbo cooler |
| Functions | SenseMI Technology/DirectX® 12, PXE, Auto Power on, Wake on LAN |
| Package Content |
|
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, |
| Optional | 1xUser Manual, 1xHDMI cable |
